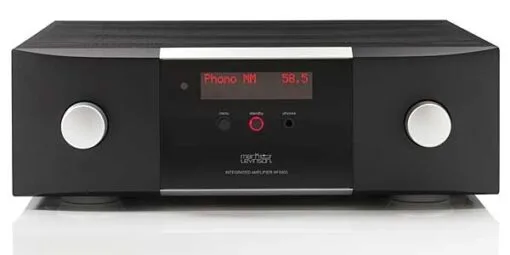

Mark Levinson No.5805

– Analog Input Connectors: 1 pair balanced line-level inputs (XLR); 2 pairs single-ended line-level inputs (RCA); 1 pair single-ended moving-coil phono inputs (RCA); 1 pair single-ended moving-magnet phono inputs (RCA) – Digital Audio Connectors: 2 optical digital inputs (Toslink); 1 asynchronous USB digital input (USB-B); №5805: 1 coaxial digital S/PDIF input (RCA); №5802: 2 coaxial digital S/PDIF input (RCA); №5802: 1 balanced digital AES/EBU input (XLR) – Output Connectors: 1 pair single-ended line-level outputs (RCA); 2 pairs loudspeaker outputs (High-current binding posts with banana sockets; accept spade lugs with ¼”/6.3mm spacing up to ⅛”/3mm thick) – Control Connectors: 1 RS-232 port (DB9 connector); 1 IR input (⅛”/3.5mm phone jack); 1 programmable 12V DC trigger output (⅛”/3.5mm phone jack), 100mA maximum; 1 programmable 12V DC trigger input (⅛”/3.5mm phone jack); 1 Ethernet port (RJ-45 connector) – Mains Voltage: 100VAC, 115VAC, or 230VAC, factory set – Power Consumption: Standby, “Green” mode: <0.4W Standby, “Power Save” mode: 7W Standby, “Normal” mode: 70W; Power on, quiescent: 120W; Power on, both channels at ⅛ rated power: 240W; – Dimensions/Weight (Unit): Height: 5.72”/145mm; Height without feet: 5.25”/133mm; Width: 17.25”/438mm; Depth: 19.98”/507mm; Weight: 62 lbs/28.1kg – Dimensions/Weight (With Packaging): Height: 13.0”/330mm; Width: 24.0”/610mm; Depth: 28.0”/711mm; Weight: 73 lbs/33.0kg;
